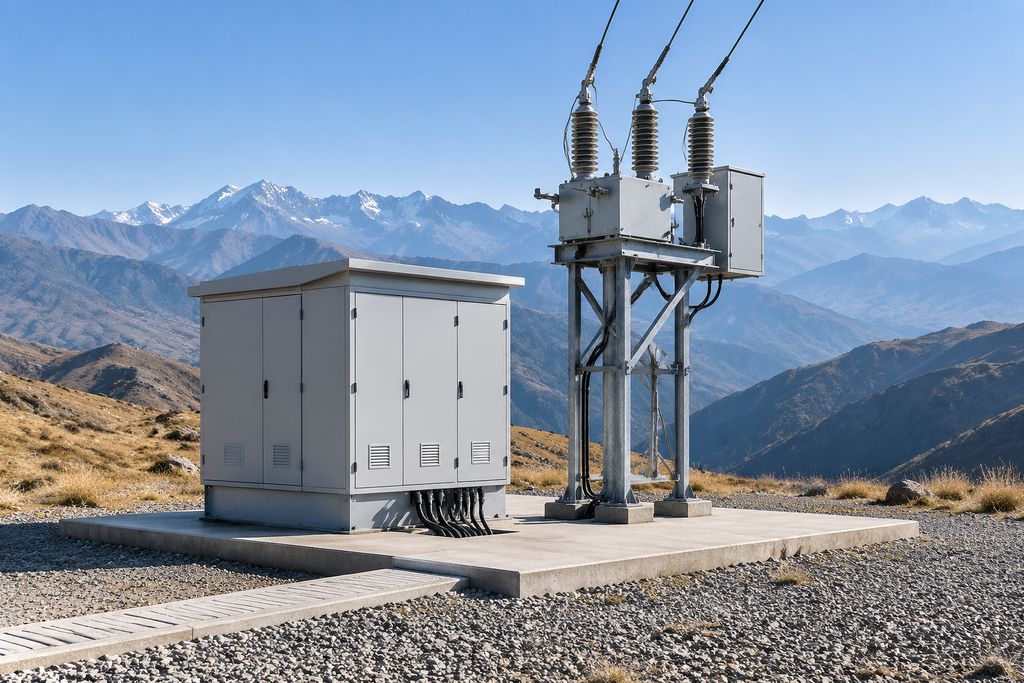

High altitude switchgear is standard switchgear whose insulation and current ratings have been confirmed for the air density and cooling at the site. Two separate effects are at work. Thinner air breaks down at a lower voltage, so external insulation has less margin. Thinner air also removes heat less effectively, so current-carrying parts run hotter at the same load. A specification that addresses only one of the two has addressed half the problem.
The reference point is 1,000 metres above sea level. Below it, equipment is normally evaluated against standard service conditions. Above it, the altitude becomes a stated site condition that the manufacturer has to answer for, and the answer takes the form of a corrected insulation level and a confirmed usable current rather than a yes.
This guide sets out what changes, how the two corrections are made, what belongs in the enquiry, and how to verify a claim before the order is placed. It is written for the buyer who has a site elevation on a drawing and needs to know what to do with it.
Why Is 1,000 Metres the Line?
Because that is where the standards draw it. Schneider Electric's own technical note on the subject states it plainly: equipment rated insulation level is specified at normal service conditions, and the normal altitude is 1,000 m or below. For installations higher than that, the insulation withstand level of external insulation at the service location is determined by multiplying the rated insulation levels by a correction factor taken from IEC 62271-1.
The figure is a convention, not a physical threshold. Air density falls continuously with height, so a site at 1,100 m is only marginally different from one at 900 m. What the convention provides is a clear boundary at which the responsibility shifts: below it, catalogue values can be used as published; above it, the site has to be declared and the values confirmed. That shift is the practical content of the rule.
What Actually Changes Above 1,000 Metres?
Two physical properties, and they produce two different engineering consequences.
The first is dielectric strength. Air is the insulating medium for every exposed clearance in air-insulated equipment: phase to phase, phase to earth, across a disconnecting gap, along a bushing, around a cable termination. As pressure and density fall, the voltage at which that gap breaks down falls with them, so the same physical distance holds off less voltage than it did at sea level.
The second is cooling. Convective heat transfer depends on the mass of air moving past a warm surface, and thinner air carries less mass for the same volume. A busbar, a contact or a cable termination therefore reaches a higher temperature at the same current, and the margin between its operating temperature and its limit shrinks.
The two effects are independent, and they are addressed by different parts of the specification. Insulation is corrected by raising the withstand level or the clearance. Temperature is corrected by reducing the current, improving the cooling, or accepting a larger assembly. A supplier who answers only the insulation question has left the thermal one open.
How Is the Insulation Level Corrected?
By multiplying, not by adding. The required withstand at the site is divided by a correction factor to give the equivalent requirement at standard reference conditions, or the equipment's standard rating is multiplied by the factor to give what it can deliver at the site. Schneider's note is precise about which insulation this applies to: the correction is valid for external insulation, where the insulation distance is in atmospheric air. For internal insulation such as the gas in an SF6 compartment, the dielectric characteristics are described as identical at any altitude, though the manufacturer may still need to be consulted for the specific product.
The factor itself is published as a graph in the standard, and manufacturers also express it as an exponential relation. One switchgear manufacturer's published guidance gives the form as an exponential function of the height above 1,000 m divided by 8,150, with an exponent that depends on the type of insulation stress; for power-frequency and lightning impulse withstand in medium-voltage examples it uses an exponent of one. At 2,500 m that guidance arrives at a factor of about 1.20, and applies it to an example requirement of a 75 kV lightning impulse level to give roughly 90 kV under standard reference conditions.
Those numbers belong to the manufacturer that published them and to the assumptions behind that example. They are quoted here to show the shape of the calculation, not as values to copy into a specification. What a buyer should take from it is that the correction is modest at 2,000 m and grows quickly above 3,000 m, and that it is applied to the withstand level rather than to the system voltage.
How Much Current Is Lost in High Ambient?
More than most project schedules allow for, and the arithmetic is simple once the manufacturer's reference conditions are known. Siemens publishes the method it uses for low-voltage switchgear: where the ambient exceeds 40 C, the maximum continuous current rating of breakers, busbars and other current-carrying components must be derated, and the factor is the square root of the special ambient subtracted from 105, divided by 65.
The worked example in that note is a 4,000 A assembly at 50 C, which becomes 3,680 A, a factor of 0.92 derived from the square root of 55 divided by 65. Two things are worth extracting from it. The first is that the loss is real but not catastrophic at 50 C: eight percent. The second is that the formula is a low-voltage assembly method, and a medium-voltage assembly has its own reference conditions and its own curve. The principle transfers; the numbers do not.
For a medium-voltage cabinet the same logic applies through the busbar and the enclosure. A cabinet rated at a 40 C ambient and installed in a switch room that reaches 55 C cannot deliver its nameplate current, and the correction depends on how the assembly was verified. That is why the busbar current rating is only meaningful with its ambient and rise limit attached.
Condition, Effect and the Question to Ask
The table reduces the two corrections to the questions that actually get answered in a tender.
| What it changes | Question for the supplier | |
|---|---|---|
| Altitude above 1,000 m | Dielectric strength of external air insulation | What corrected withstand level does the offered configuration deliver at this altitude, and on what basis? |
| Ambient above 40 C | Continuous current through thermal limits | What is the usable current at the stated ambient, and which curve or test supports it? |
| Altitude plus high ambient together | Both, and the cooling margin at the same time | Has the rating been confirmed for this combination, not for each condition separately? |
| Dust, sand or pollution | Creepage performance, not air clearance | What creepage and pollution level is declared, and does it match the site classification? |
| Long de-energised periods | Moisture behaviour rather than rating | Is anti-condensation provision included for the altitude and climate combination? |
Is a Higher Voltage Class the Answer?
Usually not by itself, and treating it as a rule is expensive. For high altitude switchgear projects the first question is what performance the site requires, not what class the catalogue offers. A 10 kV or 11 kV distribution system does not become a 20 kV system because the substation is at 2,500 m. The system voltage is set by the network, and the equipment class follows from the network plus the insulation performance required at the site.
What a higher class does provide is more insulation distance and a higher withstand level, which is sometimes the most economical way to meet the corrected requirement in a compact air-insulated design. The published guidance from one manufacturer makes this point in both directions: it notes an example where a 17.5 kV application at 2,500 m needed a higher-rated design, while also warning against automatically stepping up a class. The engineering sequence is site altitude, then required insulation level, then thermal conditions, then technology, then configuration.
There is a second reason not to reach for the next class reflexively. A larger cabinet changes the switch room, the cable termination geometry, the shipping dimensions and the civil works. Those costs are real, and they are incurred before anyone has checked whether the standard design would have passed the corrected calculation.
Air Clearance Is Not Creepage Distance
The two are often specified together and confused. Air clearance is the shortest path through air between conductive parts, and it is what altitude erodes. Creepage distance is the path along the surface of an insulator, and it is governed by what deposits itself on that surface: dust, salt, industrial pollution and moisture.
The distinction matters because the two conditions are often present at once and need different measures. A dusty highland site at 3,000 m needs both a corrected clearance and a creepage distance suited to the pollution, while a clean indoor switch room at the same altitude needs only the first. A coastal site at 200 m needs the second and may need nothing for altitude at all. The metal-enclosed switchgear guide covers how the cabinet families differ in service conditions, and the condensation guide covers the moisture side of the same site picture.
What Should the RFQ State?
A high altitude switchgear enquiry fails for the same reason most technical enquiries fail: the site conditions are summarised as one line. These are the inputs a manufacturer actually needs.
- Installation altitude in metres above sea level, as a number.
- Maximum and minimum ambient, plus the 24-hour mean where the utility specifies one.
- Indoor or outdoor, shaded or exposed, and the switch room ventilation arrangement.
- Nominal system voltage, highest voltage for equipment, and the required power-frequency and lightning impulse withstand levels.
- Continuous current for the busbar and for each feeder, and the short-circuit current with its duration.
- Pollution and humidity classification, and whether the site is dusty or coastal.
- Insulation technology preference: air-insulated, gas-insulated or solid-insulated.
- The evidence required: type test reports, the altitude correction basis, the temperature rise basis and any site-specific confirmation.
That list takes ten minutes to assemble and removes most of the technical revision cycle from a project. It also makes quotations comparable, because two suppliers given the same altitude and ambient will answer on the same basis.
Gulf Heat and Central Asian Altitude Are Different Problems
The two conditions that trigger these corrections are not usually found in the same place, and it helps to keep them separate when specifying across a region.
A Gulf coastal site is close to sea level and its problem is heat, humidity and salt. The insulation correction is negligible; the ambient correction is significant, and the moisture and corrosion measures matter more than the altitude clause. A Central Asian mountain site is the reverse: moderate ambient, low humidity, and an altitude that reaches well past 1,000 m, with dust and wide diurnal swings on top.
A specification template written for one and applied to the other will ask for the wrong evidence. The practical approach is to put both figures in the enquiry, altitude and ambient, and let the manufacturer confirm which correction governs. That is also the honest way to compare offers, because a supplier who has noticed only one of the two conditions will be cheaper for a reason. High altitude switchgear and high ambient switchgear are not the same product requirement, and a quote that treats them as one is worth questioning.
How Do You Verify a Claimed Rating?
Ask for the basis, not the conclusion. For the insulation, the request is the declared withstand level with the correction applied and the altitude it applies to, plus confirmation of which components change for the site: bushings, clearances, cable termination arrangements or the platform itself. For the current, the request is the usable continuous current at the stated ambient, with the curve or test behind it.
Then check that the type test reports describe the configuration being offered, not a sibling product. The type test report guide sets out what a report has to contain and how to tell whether it covers the actual arrangement. A report for a different busbar spacing, a different enclosure or a different voltage class does not support the claim, however impressive the document looks.
Finally, treat the site conditions as part of the contract rather than as background information. If the altitude or the ambient turns out to be different from what was stated, the rating has to be re-confirmed, and it is much cheaper to discover that before the equipment is on a truck.
Where Nahu Group Fits
Nahu Group builds metal-enclosed distribution cabinets, ring main units, vacuum circuit breakers, instrument transformers and outdoor metering equipment for 10 to 35 kV networks. For a project above 1,000 m, or one where the ambient exceeds the standard reference, the configuration is confirmed against the declared site conditions rather than against a catalogue default, because the corrections change the insulation level, the usable current or both.
The most useful thing a buyer can send is the two numbers that drive everything else: the installation altitude and the ambient range. With those, and the single-line diagram, the equipment can be matched to the site instead of the site being matched to the equipment afterwards. The cabinet range lists the configurations available for that discussion.
Frequently Asked Questions About High Altitude Switchgear
At what altitude does switchgear need special consideration?
Above 1,000 metres above sea level under IEC-based service conditions. At or below that figure, equipment is normally evaluated against standard conditions. Above it, the installation altitude has to be stated and the insulation performance confirmed for the site.
Does high altitude reduce the current rating?
It can. Thinner air removes heat less effectively, so a component running at the same current settles at a higher temperature. Whether a derating is required, and how much, depends on the equipment design and on the ambient temperature, and it should be confirmed by the manufacturer rather than estimated.
Is the altitude correction the same for every part of the insulation?
No. The correction applies to external insulation, meaning insulation distances in atmospheric air. Sealed internal insulation, such as the gas inside an SF6 compartment, does not depend directly on the surrounding air density, although the manufacturer should still confirm the configuration for the site.
Does a high-altitude site need a higher-voltage switchgear class?
Not automatically. The system voltage does not change because the site is high. What changes is the insulation performance the equipment has to deliver at that site. A higher class may turn out to be the practical way to obtain that performance, but it should follow from the calculation rather than replace it.
How is the ambient temperature correction calculated?
Manufacturers publish a derating curve or factor for their own assemblies. One published method for low-voltage switchgear derives the factor from the square root of the ratio of the allowable temperature rise at the special ambient to the rise at the standard ambient. The curve for a given medium-voltage assembly should be requested from its manufacturer.
Are air clearance and creepage distance affected the same way?
No. Air clearance is a distance through air, so it is sensitive to air density and therefore to altitude. Creepage distance is measured along an insulating surface and is governed mainly by pollution and moisture, not by altitude. A high-altitude site and a coastal site can need different measures for different reasons.
What if the site is both high and hot?
Then both corrections apply and they interact. The insulation correction follows the altitude, while the usable current follows the ambient temperature and the cooling available. A specification that states only one of the two leaves the manufacturer to assume the other, and the assumption is usually not the conservative one.
What evidence should be requested for a high-altitude project?
The declared insulation level with the altitude correction applied, the basis of the current rating at the stated ambient, confirmation of which components change for the site, and the type test reports for the configuration being offered. A statement that the equipment is suitable for the altitude, without the basis, is not verifiable.
