Gas-Insulated (RMU) Type Transformers
Purpose-built current transformer for outdoor pole-mounted switches. It fixes onto the three-phase bushing of an outdoor circuit breaker and provides short-circuit protection, single-grounding (zero-sequence) protection and control-power supply at once. It also fits the three-phase bushing of ring-main-unit incoming and outgoing lines for current measurement, energy metering and microcomputer protection. Widely used on ZW20, ZW27, ZW28 and VSP5 pole-mounted switches, it solves the problem of pole-switch interiors being too narrow to fit a separate zero-sequence transformer. Core and secondary winding are vacuum-cast in high-quality epoxy resin inside a flame-retardant plastic shell — moisture resistant, stable and maintenance free.

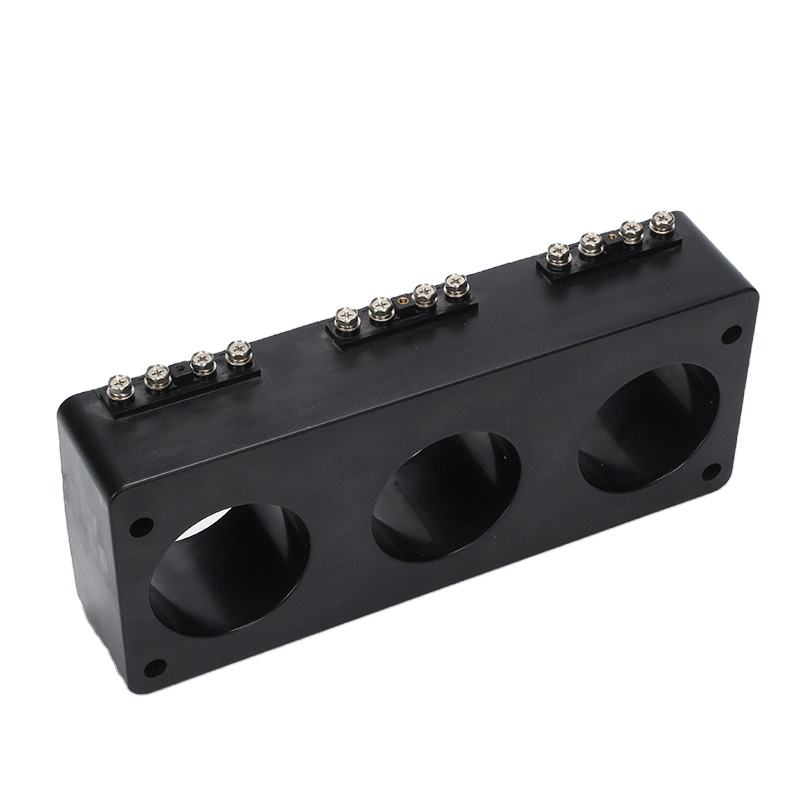

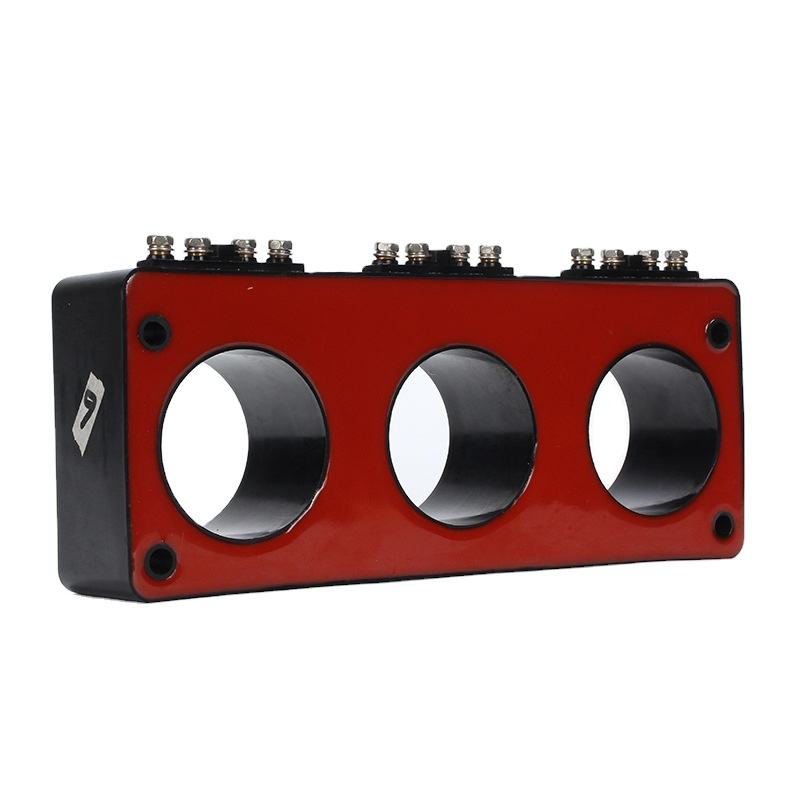

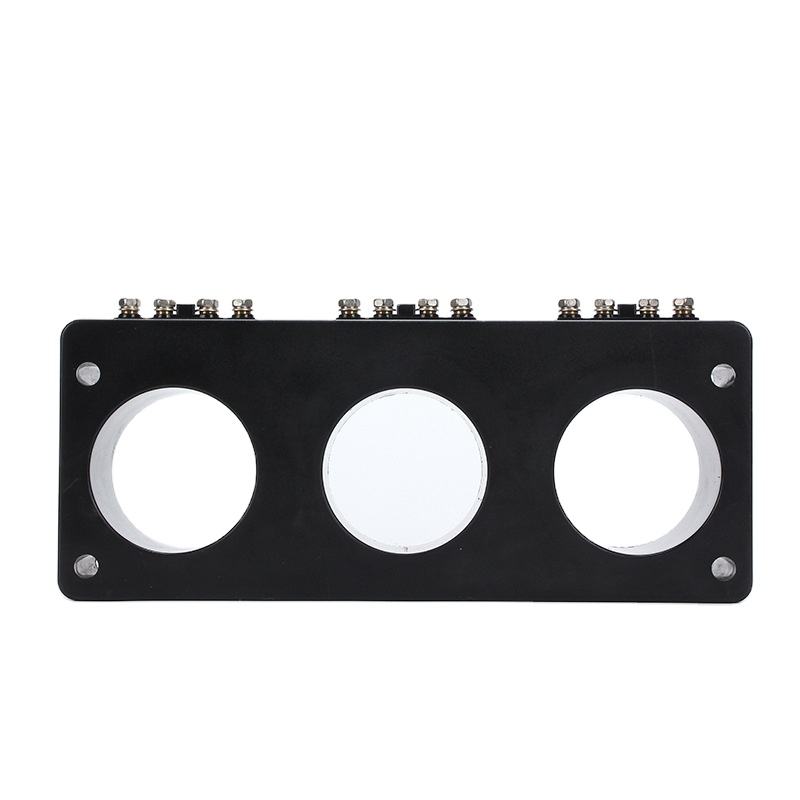

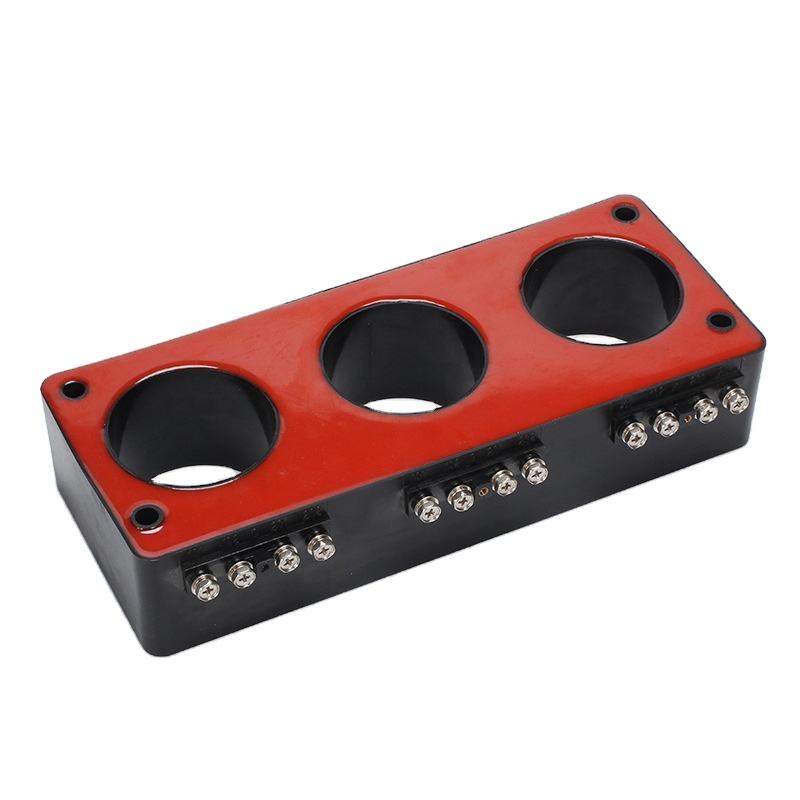

The LSY107-10 is a three-phase combined current transformer built for gas-insulated RMU switchgear and pole-mounted switch assemblies.
It provides simultaneous measurement, metering and zero-sequence protection functions from one compact unit, vacuum-cast in epoxy resin.
Product descriptions from the supplierReport abuseVideo Description00:00/02:10
Ratios 20/1 to 600/5 · 107 mm three-phase hole spacing · 320 × 127 × 65 mm.
Price
From US$50
MOQ 1 piece · Lead time 31 days
Verified buyer feedback from our customers worldwide.
N**************a
United Arab Emirates · June 15, 2025
Purchased: JDZXW-35 Indoor Transformer
Good, Bill was a pleasure to deal with - very accurate and responsive.
N**************a
United Arab Emirates · May 12, 2025
Purchased: JDZXW-35 Indoor Transformer
Good quality.
e***********o
Mozambique · November 15, 2024
Purchased: 33kV High-Voltage Cutout (RW33-15)
High quality product, excellent communication, on-time delivery.
V*******************d
Philippines · September 12, 2024
Purchased: LZZW-10Q Outdoor Current Transformer
Good product.
Manufacturer data sheet — model designation, rated ratios, accuracy classes, thermal and dynamic current ratings, and overall dimension drawings.
