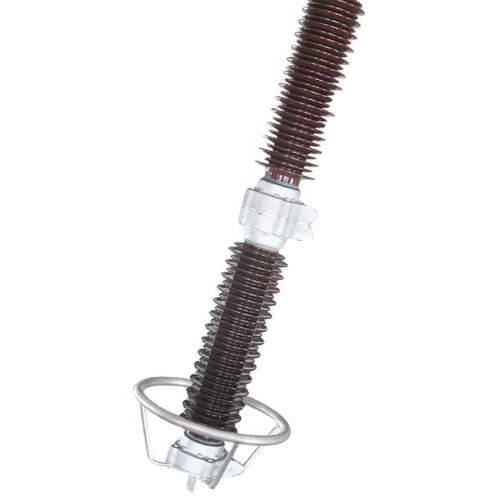

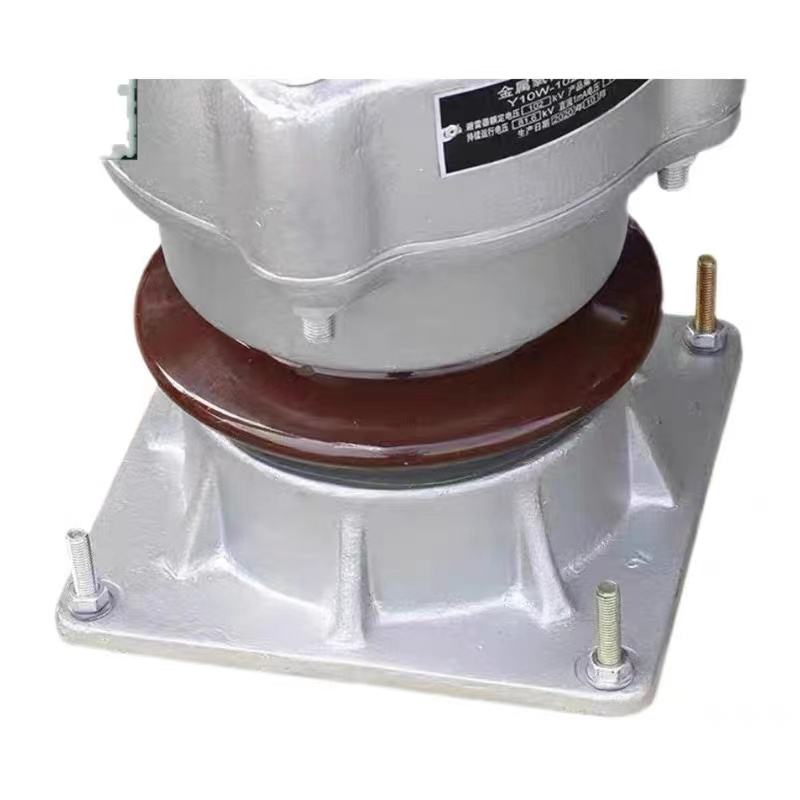

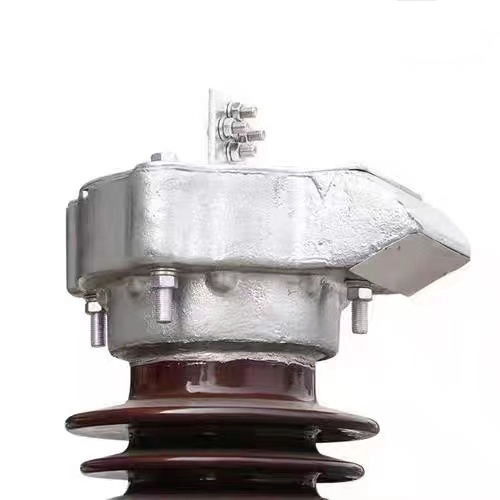

High-Voltage Lightning Arrester
Product descriptions from the supplierReport abuse
Price
US$90–300
MOQ 1 piece · Lead time 25 days
Verified buyer feedback from our customers worldwide.
N**************a
United Arab Emirates · June 15, 2025
Purchased: JDZXW-35 Indoor Transformer
Good, Bill was a pleasure to deal with - very accurate and responsive.
N**************a
United Arab Emirates · May 12, 2025
Purchased: JDZXW-35 Indoor Transformer
Good quality.
e***********o
Mozambique · November 15, 2024
Purchased: 33kV High-Voltage Cutout (RW33-15)
High quality product, excellent communication, on-time delivery.
V*******************d
Philippines · September 12, 2024
Purchased: LZZW-10Q Outdoor Current Transformer
Good product.
Manufacturer data — model designation, technical parameters, dimensions and installation details.
| Surge arrester model | System rated voltage (kV) | Surge arrester rated voltage (kV) | Continuous operating voltage (kV) | DC reference voltage (≤kV) | Leakage current at 0.75U1mA (≯μA) | Residual voltage under lightning impulse current (kV>μA) | Residual voltage under operating inrush current (≯A) | Square wave pass capacity (2ms ≥ A) | High current surge withstand capability (≥kA) | Location of use |
|---|---|---|---|---|---|---|---|---|---|---|
| YH5WS-10/30DL | 6 | 10 | 8 | 15 | 30 | 25.6 | 30 | 150 | 40 | Power distribution |
| YH5WS-10/30KL-TB | 6 | 10 | 8 | 15 | 30 | 25.6 | 30 | 150 | 40 | Power distribution |
| YH5WS-17/50DL | 10 | 17 | 13.6 | 25 | 30 | 42.5 | 50 | 150 | 40 | Power distribution |
| YH5WS-17/50DL-TB | 10 | 17 | 13.6 | 25 | 30 | 42.5 | 50 | 150 | 40 | Power distribution |
