Current Transformers 3–12 kV · Indoor installation
Epoxy-resin cast, post-type current transformer for indoor switchgear. Supplies measuring and protection cores for MV panel metering, feeder protection and busbar differential schemes.

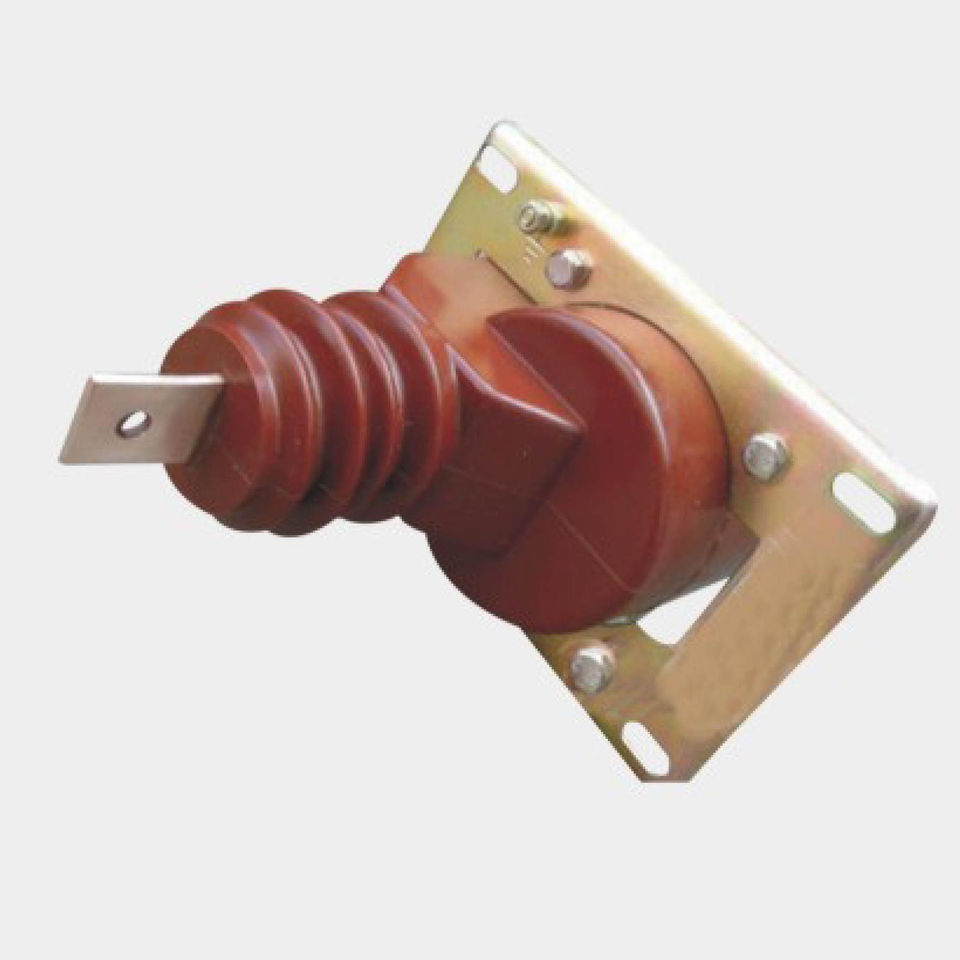

The LAZBJ-10 is an epoxy-resin cast indoor current transformer for 3–12 kV switchgear. The primary and secondary windings are vacuum-cast in high-quality epoxy resin, giving a compact, maintenance-free unit with high short-time thermal and dynamic withstand.
It provides measuring and protection cores for panel metering, feeder protection and busbar differential protection in MV distribution networks. Single, double or combined accuracy classes (0.2S/0.5S metering, 5P/10P protection) and custom ratios are available on request.
Product descriptions from the supplierReport abuseVideo Description00:00/02:10
Price
From US$85
MOQ 1 piece · Lead time 31 days
