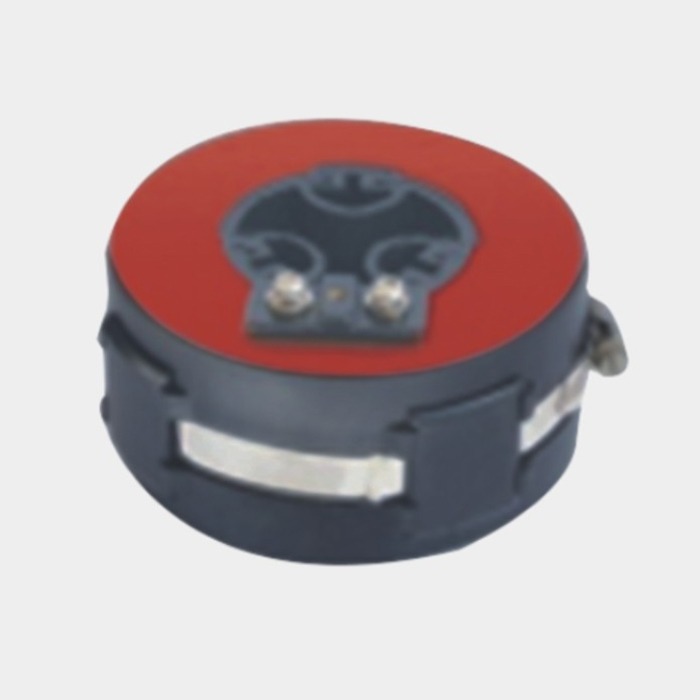

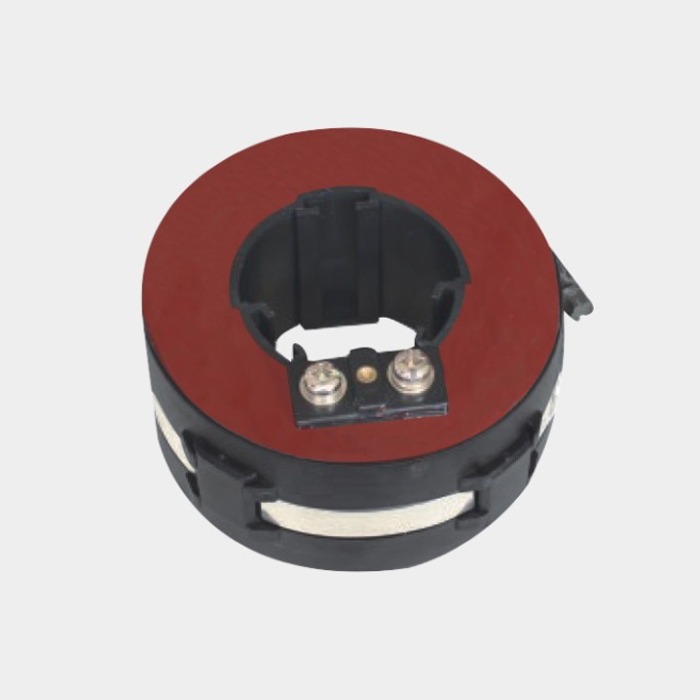

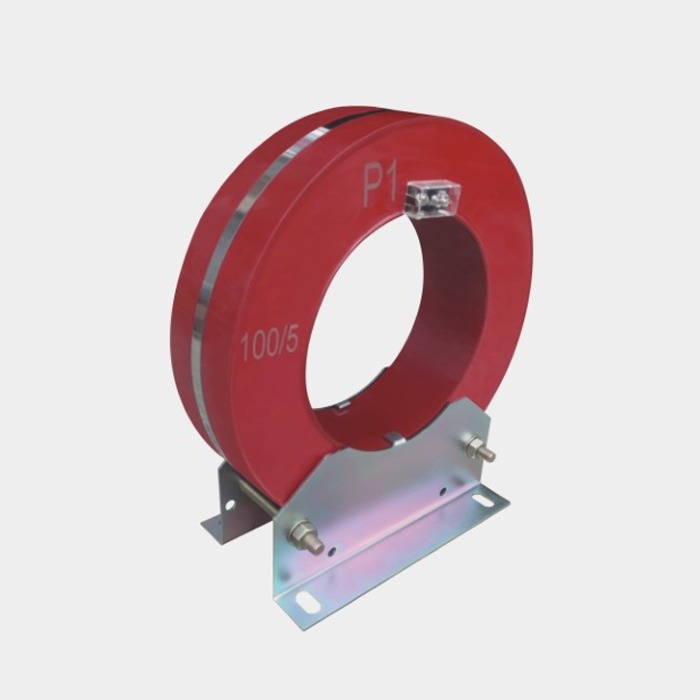

Bushing-Type Current Transformers
Bushing-mounted current transformer that fits directly over an existing bushing or cable, saving panel space in transformer and switchgear installations.
The — is a bushing-type current transformer that slips directly over a transformer bushing or cable termination, saving panel space in transformer and switchgear installations.
Available in multiple ratios and bore sizes with measuring, protection or double-winding versions for feeder metering and protection.
Rated ratios 50/1 to 300/5 · Ø120/Ø156 and Ø45/Ø130 bore variants · measuring classes 0.5/1.0/3.0, protection 10P5–10P15.

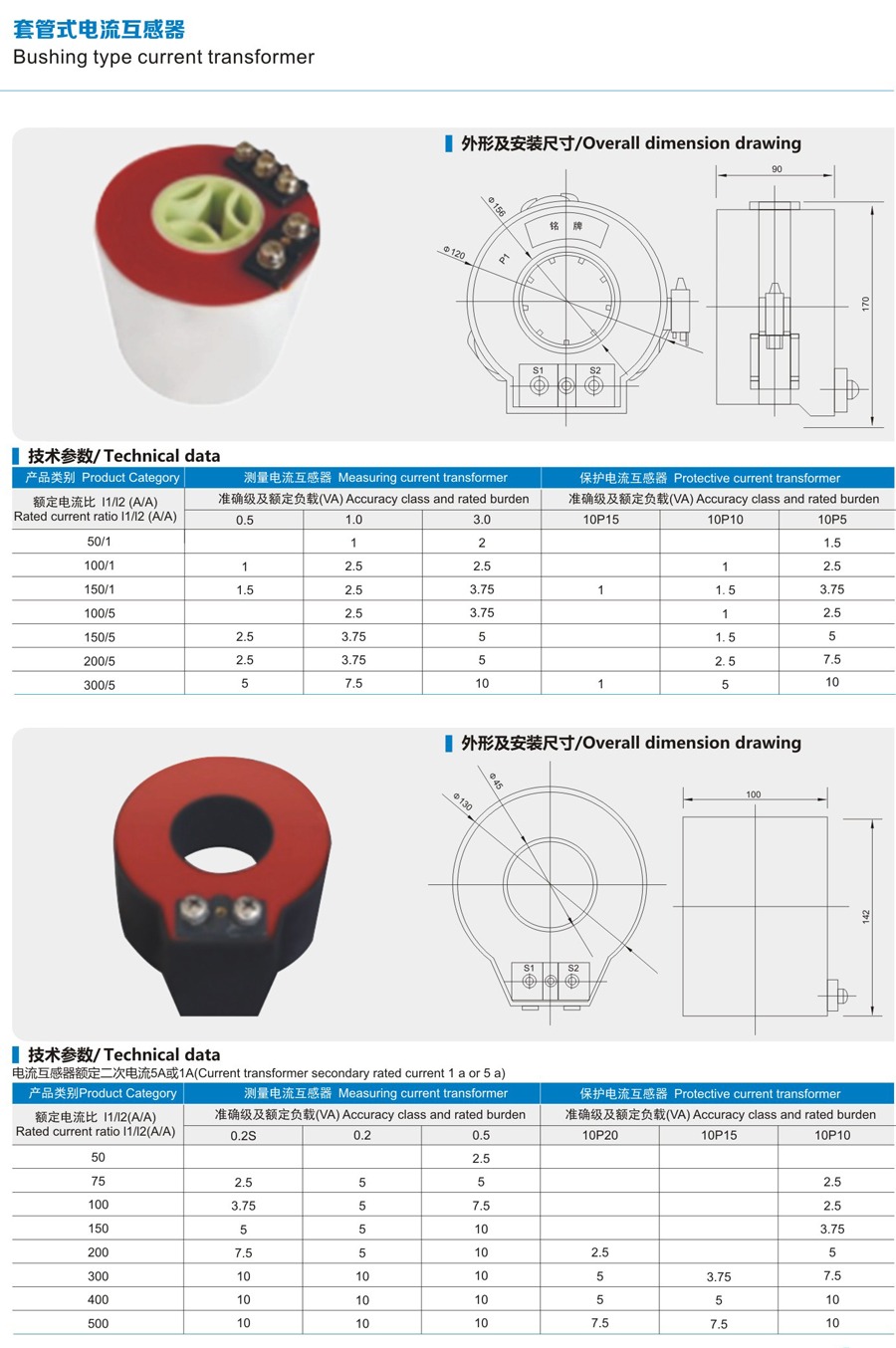

Manufacturer data sheet — model designation, rated ratios, accuracy classes, thermal and dynamic current ratings, and overall dimension drawings.
