Bushing-Type Current Transformers
Bushing-mounted current transformer that fits directly over an existing bushing or cable, saving panel space in transformer and switchgear installations.
The — is a bushing-type current transformer that slips directly over a transformer bushing or cable termination, saving panel space in transformer and switchgear installations.
Available in multiple ratios and bore sizes with measuring, protection or double-winding versions for feeder metering and protection.
Rated ratios 20 to 600 · Ø45/Ø140 and Ø70/Ø145 bore variants · measuring, protection and double-winding versions available.

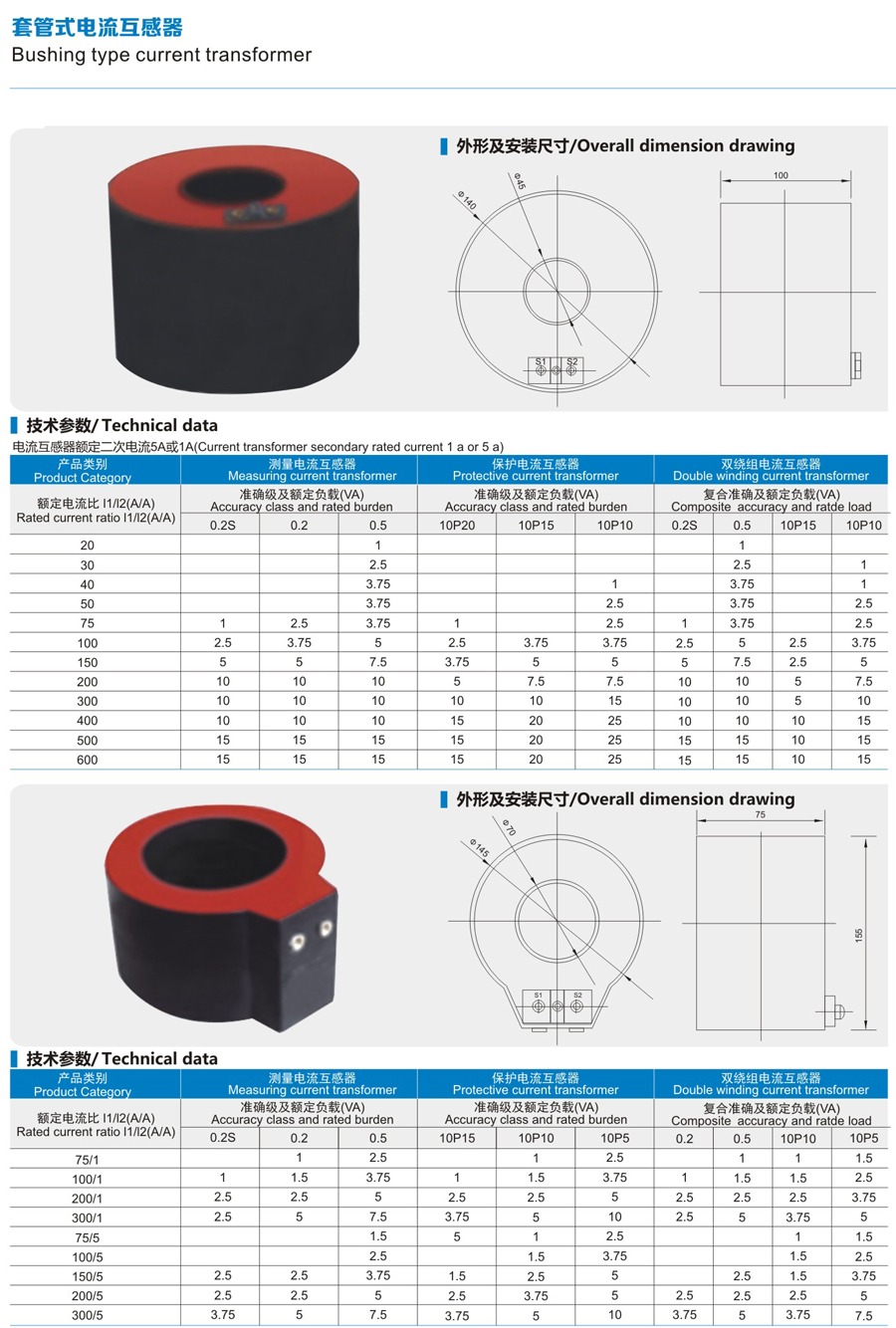

Manufacturer data sheet — model designation, rated ratios, accuracy classes, thermal and dynamic current ratings, and overall dimension drawings.
