Bushing-Type Current Transformers

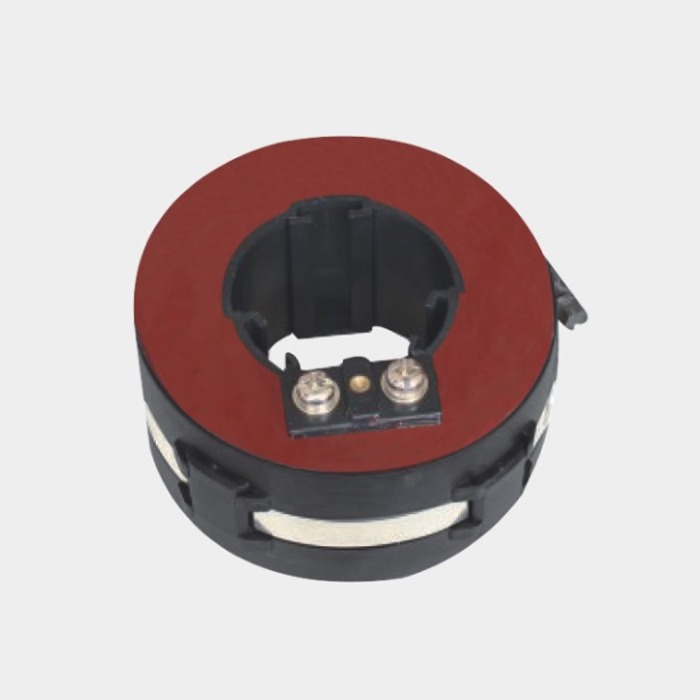

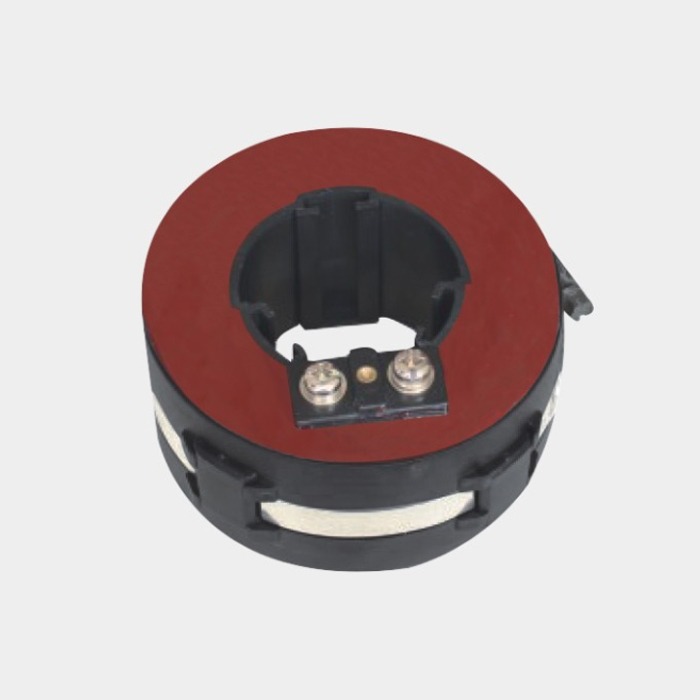

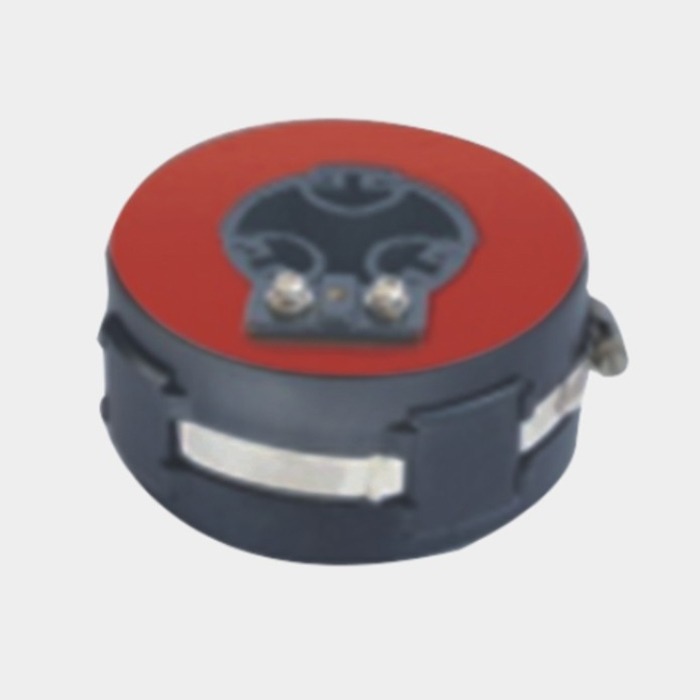

Bushing-mounted current transformer that fits directly over an existing bushing or cable, saving panel space in transformer and switchgear installations.
The — is a bushing-type current transformer that slips directly over a transformer bushing or cable termination, saving panel space in transformer and switchgear installations.

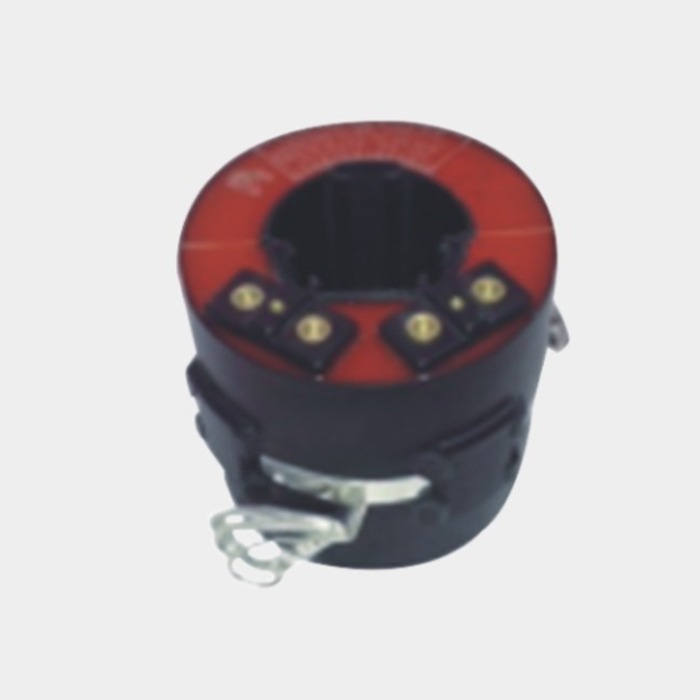

Available in multiple ratios and bore sizes with measuring, protection or double-winding versions for feeder metering and protection.
Rated ratios 100/1 to 600 · Ø82/Ø130 and Ø45/Ø100 bore variants · measuring classes 0.2S/0.2/0.5, protection 10P10–10P20.

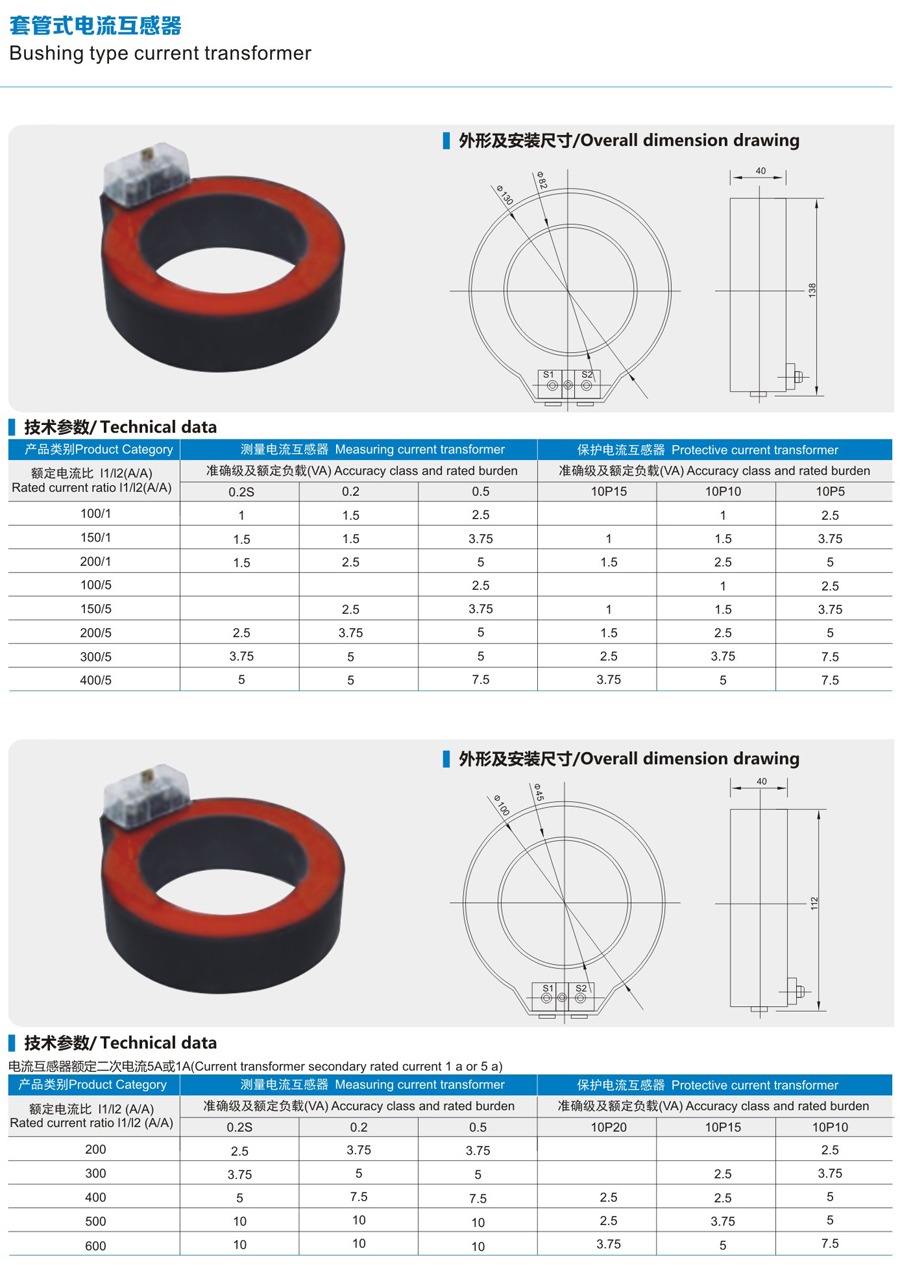

Manufacturer data sheet — model designation, rated ratios, accuracy classes, thermal and dynamic current ratings, and overall dimension drawings.
