The 630A connecting sleeve is mainly used in European-style cable branch boxes and connects to European-style front connectors. It can also be connected to a live indicator to display the energized status of the busbar.
It uses high-quality epoxy resin for insulation.

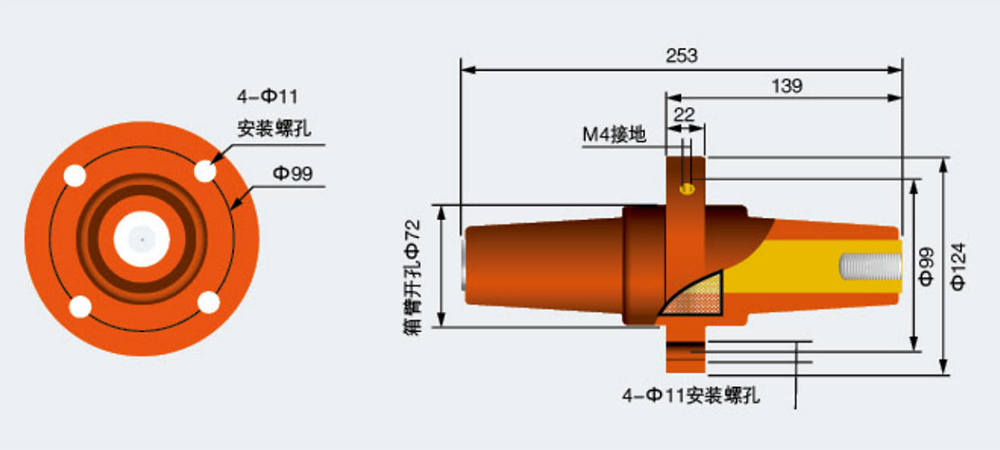

Manufacturer data — model designation, technical parameters, dimensions and installation details.
The 12kV/630 mating bushing is mainly used in European-style cable junction boxes and ring main unit switchgear. The European-style 630A front/rear connector provides a line interface for connecting a live indicator to display the energized status of the bus circuit. The product body is made of high-quality epoxy resin material, possessing good mechanical performance and electrical performance..
Connecting sleeve body
Certificate of Conformity

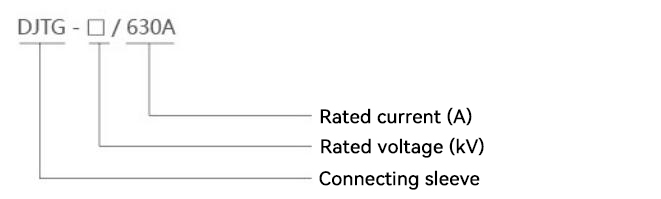

| Product Name | Product Model |
|---|---|
| 12kV connecting bushing | DJTG-12/630A |
