Cable Branch Box
u The 630A European-style rear connector can be connected to a European-style front connector or another rear connector to provide extended cable connection loops (branches). It cannot be directly connected to bushing sockets or wall bushings. Its tail can be directly plugged with an insulating plug, or it can be extended to connect to another European-style rear connector or a surge arrester.
u Suitable for indoor and outdoor installation.
u Rated voltage: 8.7/15kV

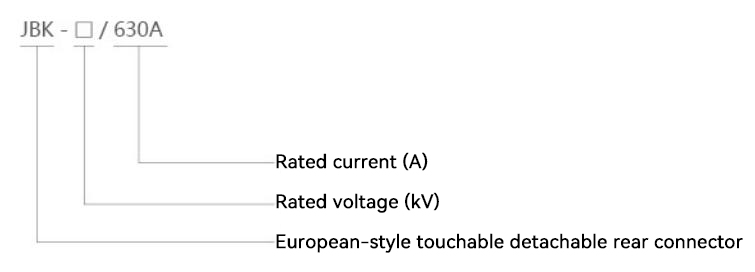

Manufacturer data — model designation, technical parameters, dimensions and installation details.
u The 630A European-style rear connector can be connected to a European-style front connector or another rear connector to provide extended cable connection loops (branches). It cannot be directly connected to bushing sockets or wall bushings. Its tail can be directly plugged with an insulating plug, or it can be extended to connect to another European-style rear connector or a surge arrester.
u Suitable for indoor and outdoor installation.
u Rated voltage: 8.7/15kV
u Continuous rated current 630A; (900A overload can be sustained for 8 hours)
u Expandable (JBK) rear connectors or (HBLQ) series surge arresters enable multi-channel installation or provide overvoltage protection.
u Cable characteristics:
² copper or aluminum conductor
² With semi-conductive or metallic shielding
² Cable conductor cross-section: 12kV 25-500mm²
u No special tools, straps, or padding are required;
u Power should be supplied immediately after the cable connector is installed on the relevant components;
u Standard accessories and installation instructions are provided.
(Please contact us for any special requirements)
