Vacuum Circuit Breaker
ZW10-12/630-20 series outdoor AC high-voltage vacuum circuit breaker is a three-phase AC 50Hz, outdoor high-voltage switchgear. It is mainly used in 12KV rural and urban power systems to open and close load current, overload current and short-circuit current. It can also be used in other similar places.
The circuit breaker can be equipped with an isolating switch to form a combination electrical appliance;
Can be equipped with a reclosing controller to form a recloser;

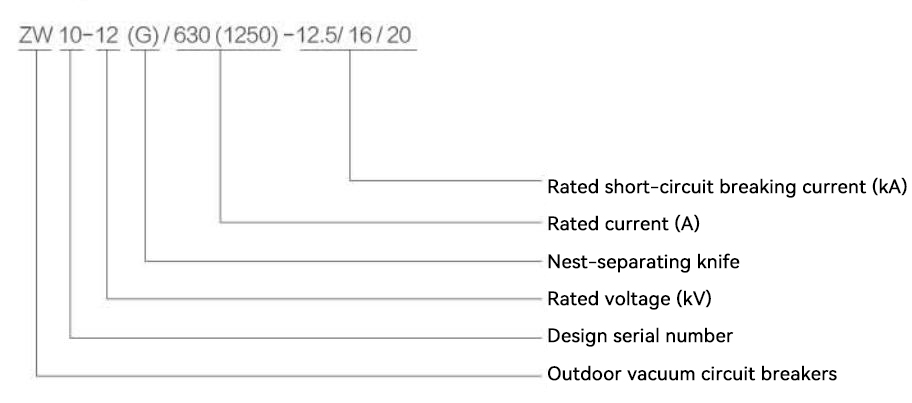

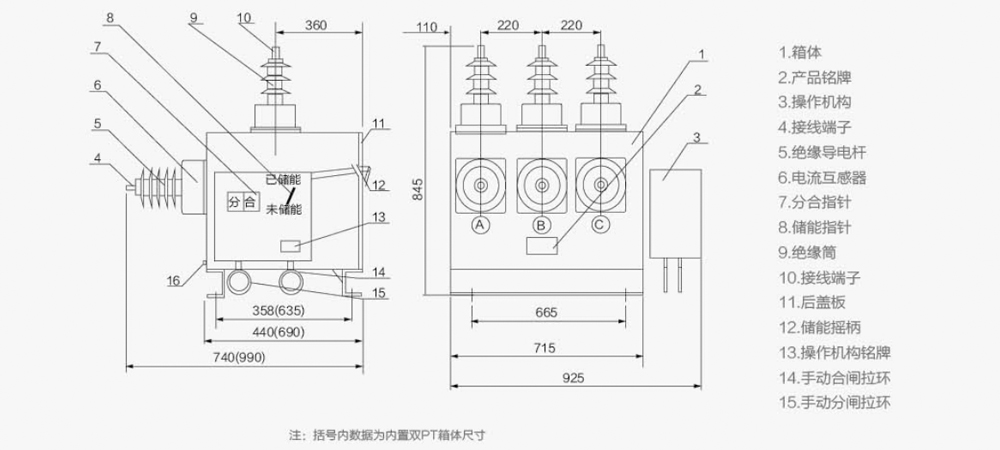

Manufacturer data — model designation, technical parameters, dimensions and installation details.
Special anti-condensation measures are adopted inside to ensure insulation inside the box;
The transmission method adopts patented technology, which is easy to install and reliable in operation, avoiding the impact of mechanical failure on the performance of the circuit breaker;
No oil filling, no air filling, small size, light weight, CT protection;
The operation can be electric or manual.
Note: When the product is used at a location exceeding 1000m, the insulation level should be corrected.
| Project | Unit | Parameter | ||
|---|---|---|---|---|
| Rated voltage | kV | 12 | ||
| Rated current | A | 630 | 1250 | |
| Rated frequency | Hz | 50 | ||
| Rated short-circuit breaking current | kA | 12.5 | 16 | 20 |
| Rated peak withstand current (peak) | KA | 31.5 | 40 | 50 |
| Rated short-time withstand current (4s) | kA | 12.5 | 16 | 20 |
| Rated short-circuit making current (peak value) | kA | 31.5 | 40 | 50 |
| Rated short-circuit breaking current breaking times | 次 | 30 | ||
| Mechanical life | 次 | 10000 | ||
| Power frequency withstand voltage (1min) | KV | 42 | ||
| Lightning impulse withstand voltage (peak) | kV | 75 | ||
| Secondary circuit 1min power frequency withstand voltage | kV | 2 |
